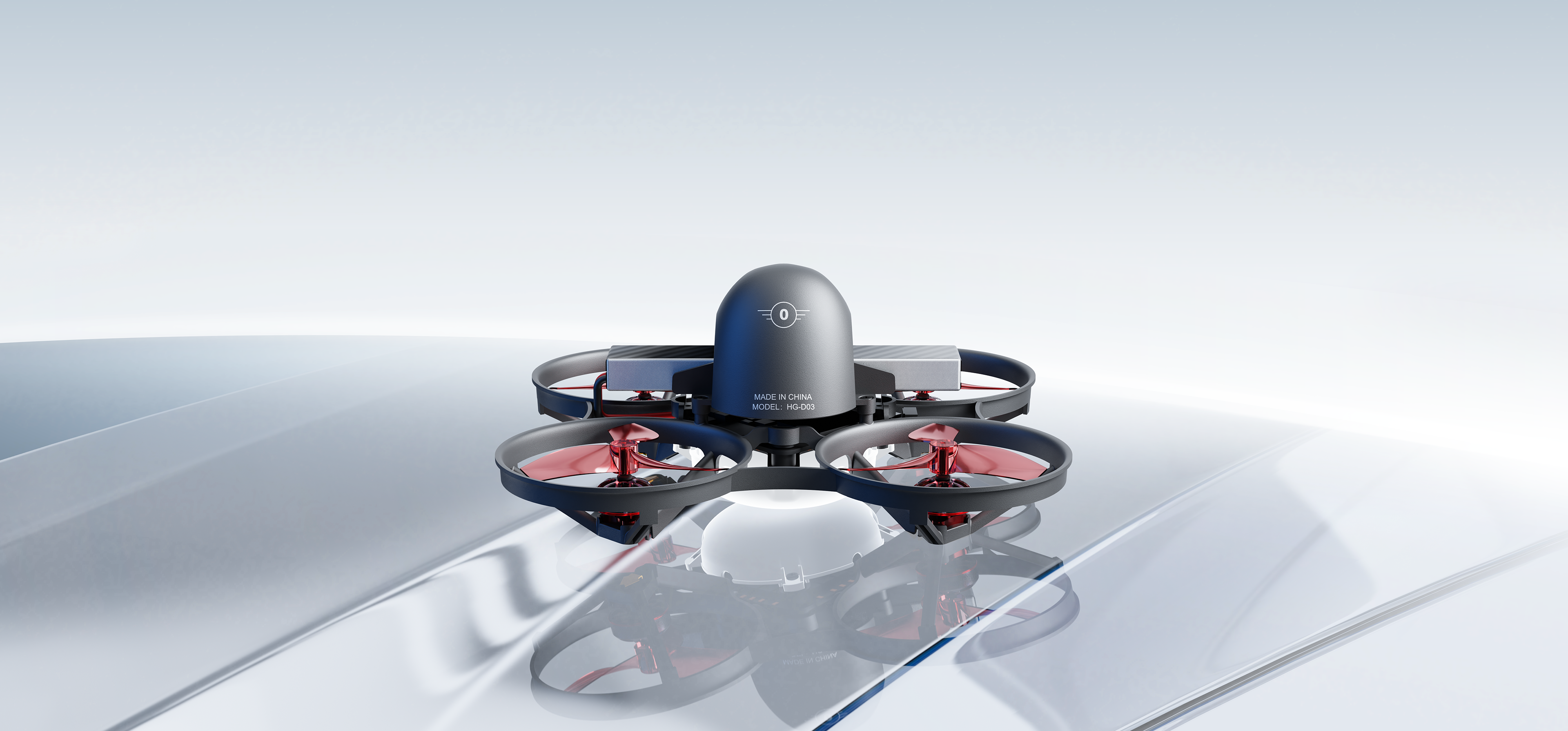

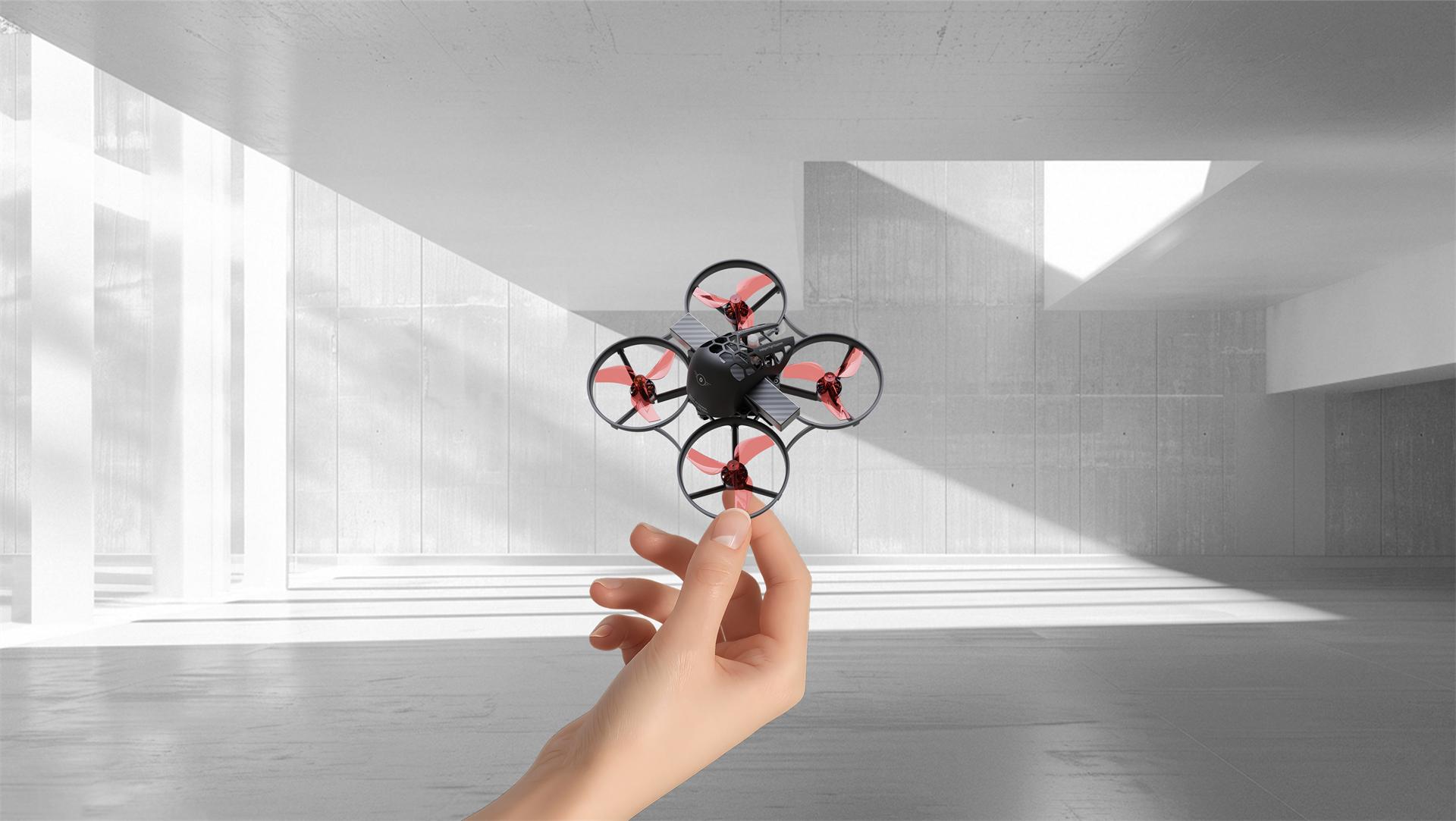

A micro-sized formation drone specifically designed for indoor performance settings

Fully automated on-site flight, suitable for various types of indoor visual performance activities

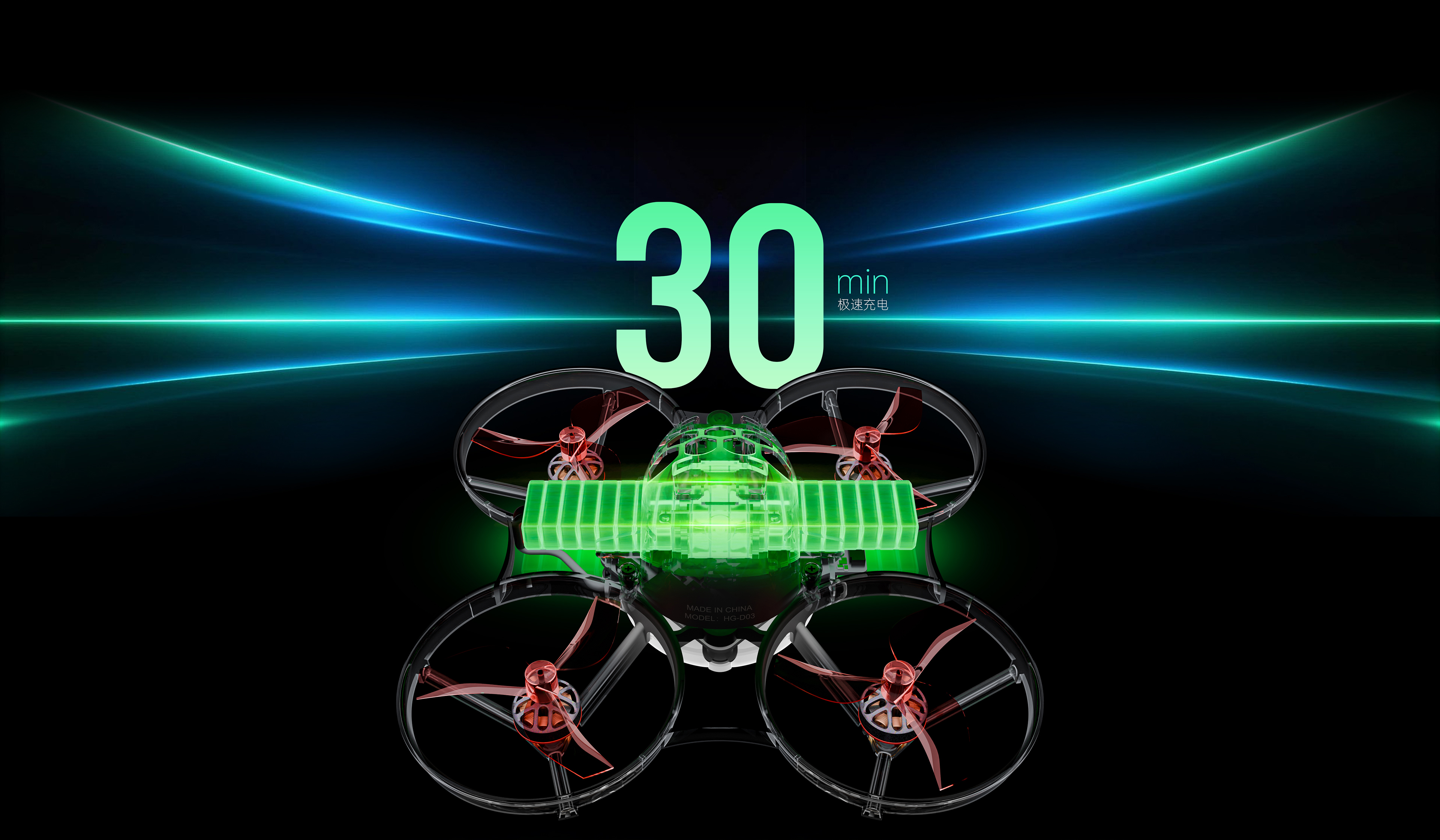

The EU version lasts for 30 minutes, while the large battery version lasts for 50 minutes

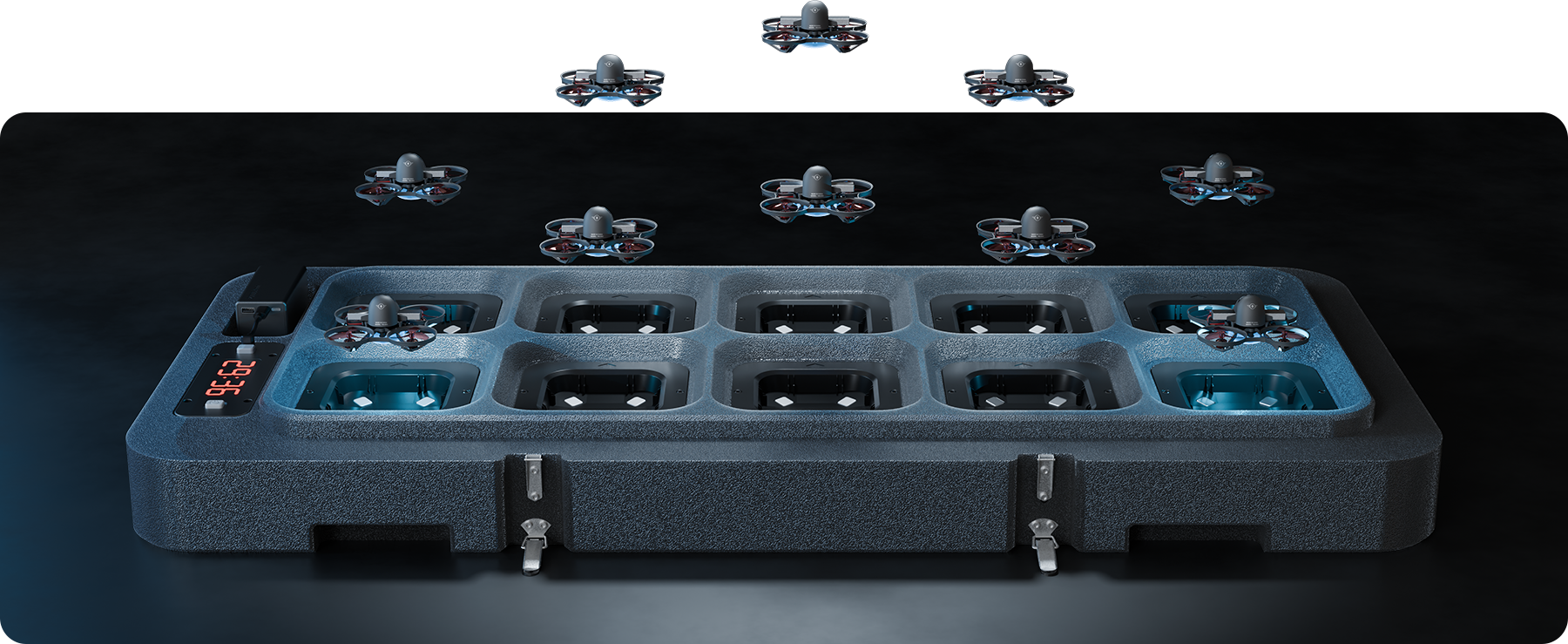

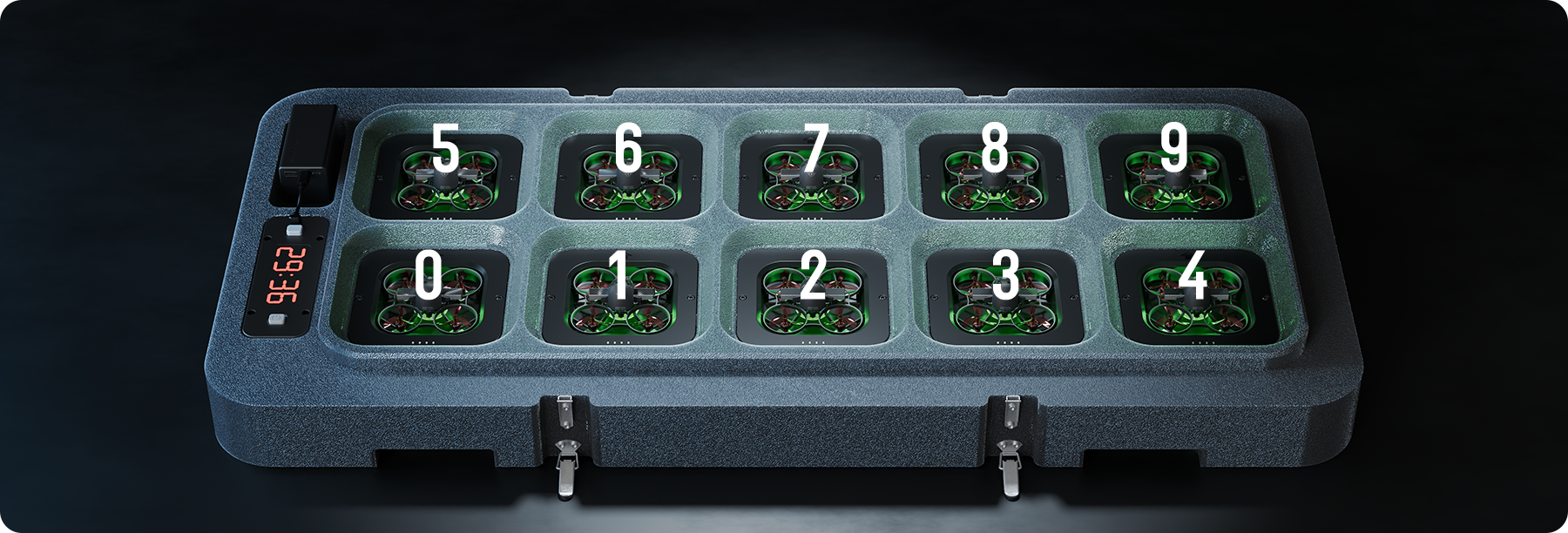

Intelligent take-off and landing system, automatic numbering, capable of rapid deployment and continuous flight

Bid farewell to cumbersome numbering, and easily handle it with one click

FYLO Mini indoor performance drone, with more application scenarios, flies towards infinite possibilities

1. Indoor theater and performances, utilizing human-machine cooperation and unmanned system coordination;

2. Indoor activities, exhibitions, annual meetings, weddings, birthdays, and other similar occasions;

3. Indoor sports events, midfield performances, opening performances, etc;

4. Indoor conferences, industry forums, summits, etc;

5. Indoor leisure and entertainment venues, such as coffee shops and bars;

6. More imagination ..

Sales package list

Each set (30 FYLO Mini drones as a set)

Complete machine (including battery) * 30 drones

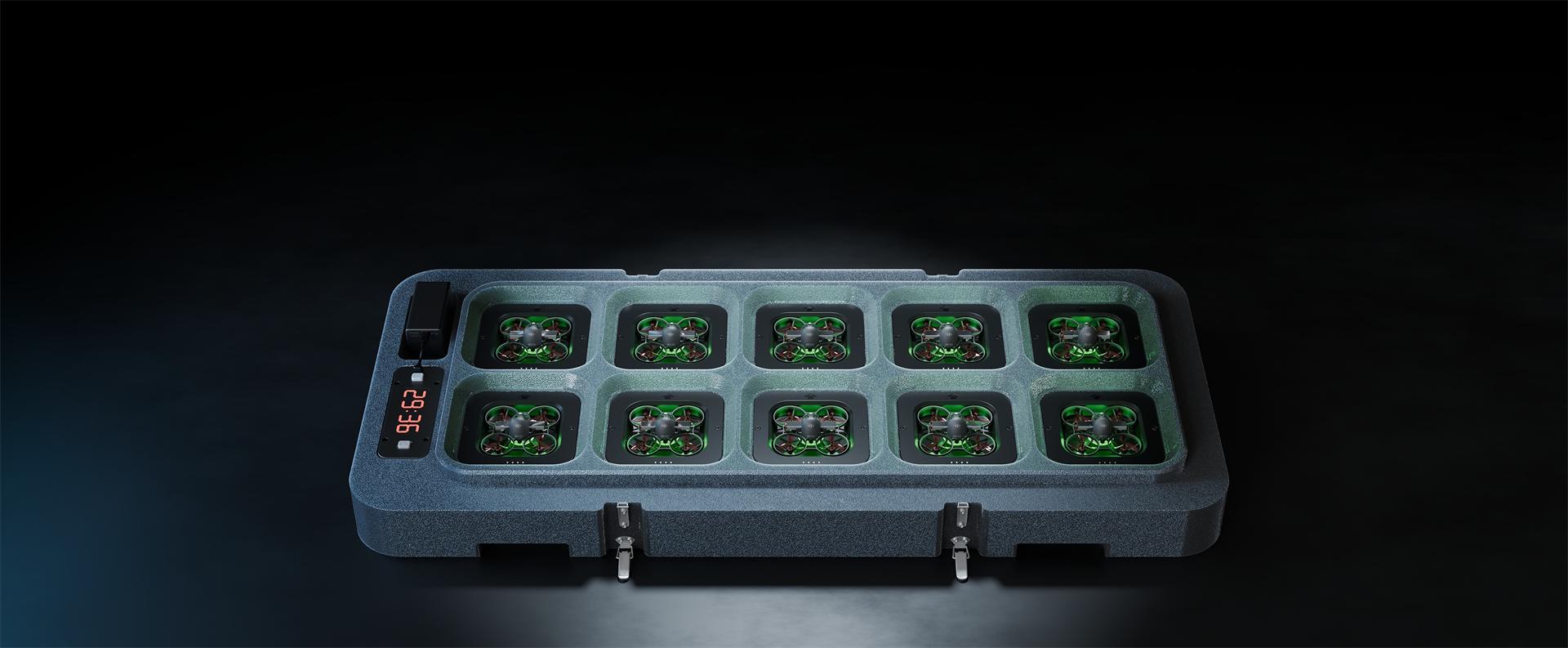

3 multi-functional storage boxes (with built-in charging modules)

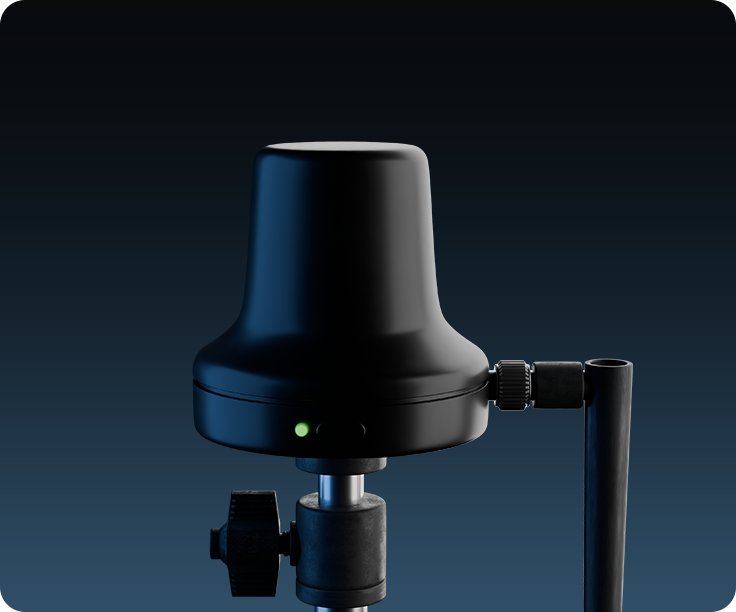

3 base stations without WIFI

Base station with WIFI *1

Four tripods

One repeater

*Increase the number of aircraft sets according to specific performance requirements to achieve a more impressive performance effect

Technical Specifications
Specification HG-D03

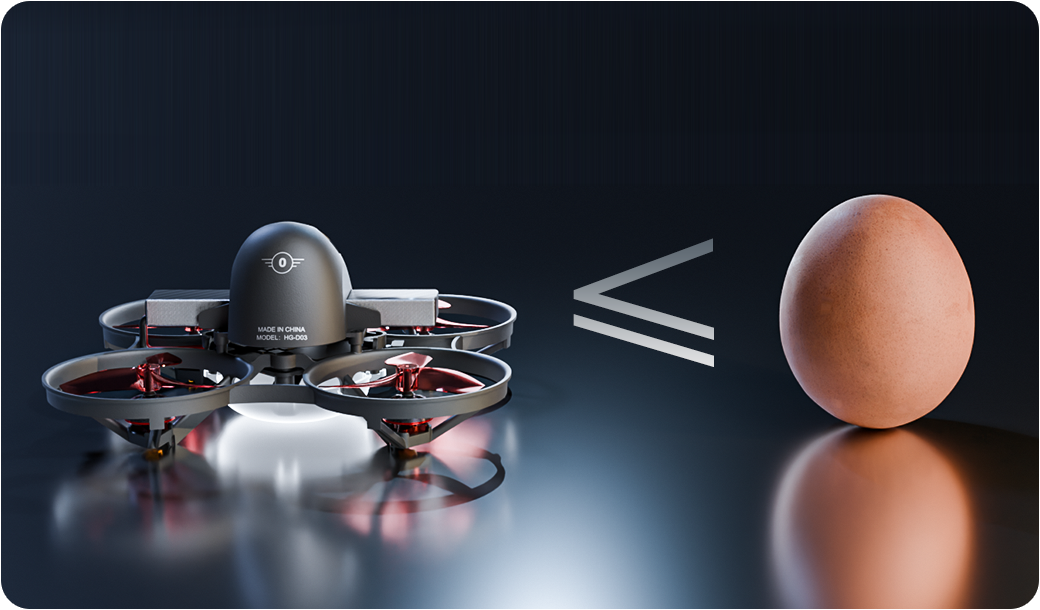

weight 35g (±1g)
wheelbase 81mm (diagonal)
Aircraft size 103.3*103.3*47.8mm

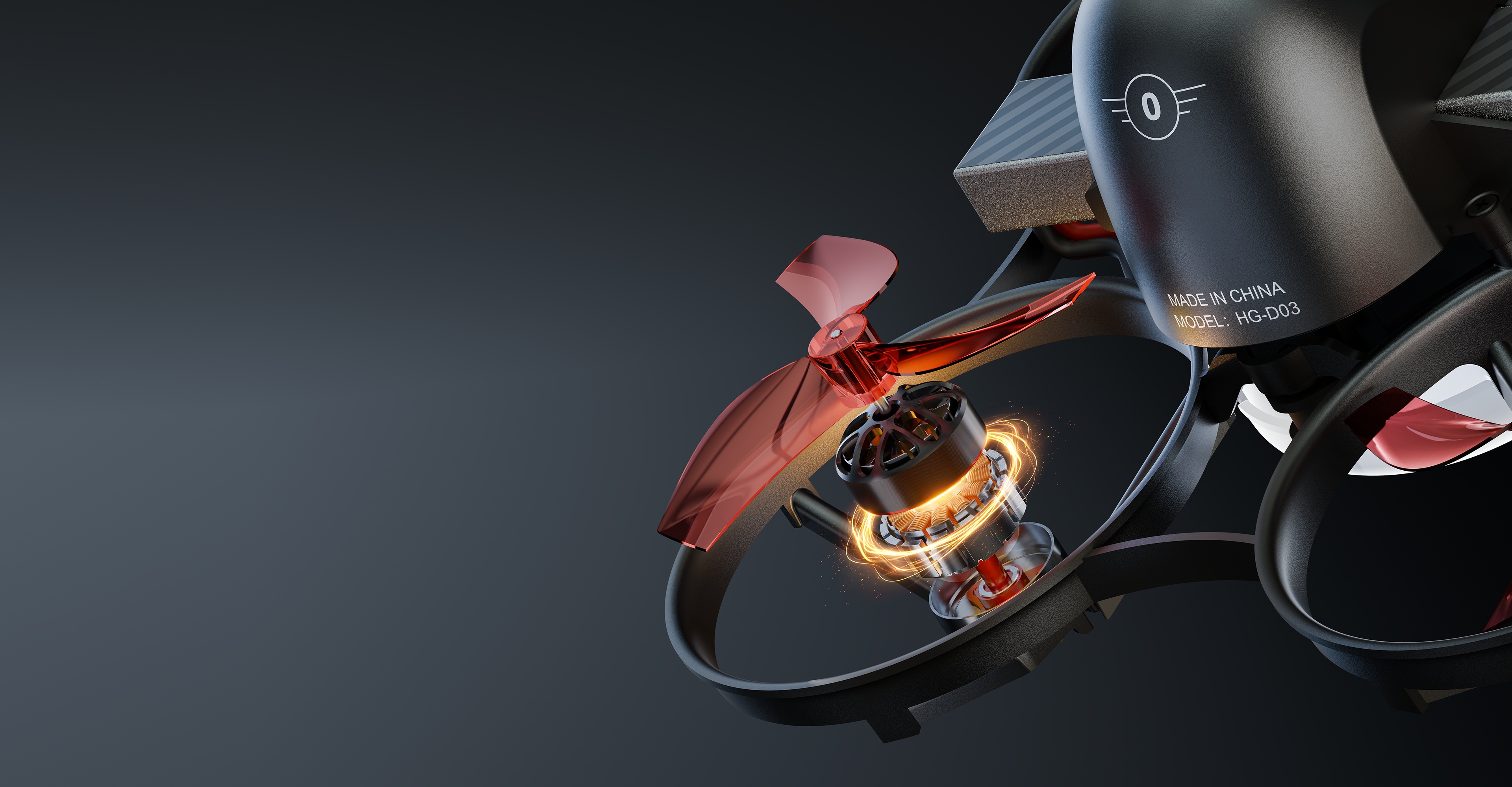

Motor Specifications 0802 19000KV

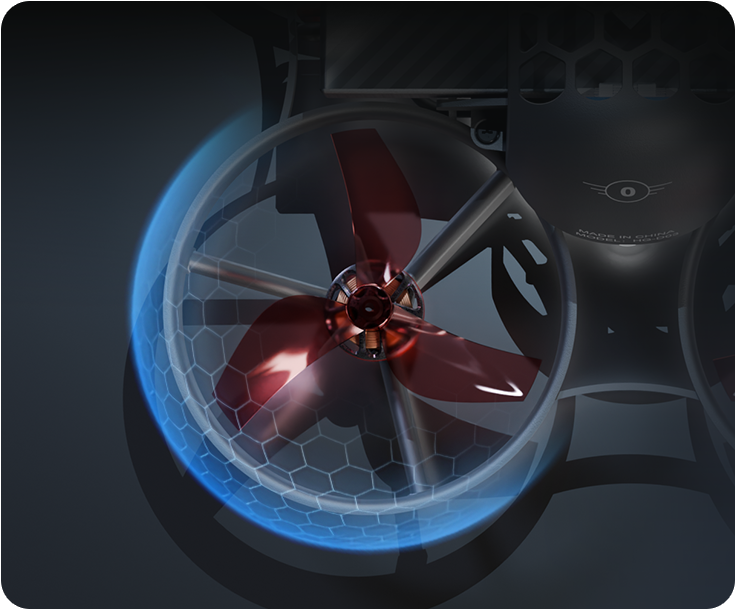

paddle blades 1635-3B
Wind resistance level ≤4m/s* ①
Positioning method Wireless converged positioning
Positioning accuracy Horizontal ±10cm, vertical ±20cm
Battery Capacity 400mAh
Battery Voltage 3.8V
Battery Type Lithium-ion batteries
Battery Weight ≤9g
Battery storage temperature ≤1Year:23±2°C
Battery life 5min * ②
Suggested performance duration 2-4min
Maximum horizontal flight speed* ③ 3.5m/s
Maximum climbing speed 2m/s
Maximum descent speed 2m/s
Dance Steps Maximum Horizontal Flight Speed 2m/s
Dance Steps Maximum Ascent Flight Speed 2m/s
Dance Steps Maximum Descent Flight Speed 2m/s
LED Full-color LED
Maximum light power 2.5W
Minimum flight distance 0.5m
Maximum communication range 80m
Maximum effective positioning range X\Y=50m_Z=30m
Operating temperature 0~40°C
Smart storage box - dimensions 1180*530*110mm
Smart storage box - weight 3930g
Smart storage box - Input voltage 20VDC
Smart storage box - Input current 3.3A
Smart storage box - output voltage 5VDC
Smart storage box_charging current ≤1.25A
Smart storage box - operating temperature 0-40°C (Battery charging temperature range)

① The wind resistance data was measured under hovering conditions in a standard wind tunnel laboratory.

② The endurance was measured at a height of 2 meters, with the low-battery landing function turned off, and under windless conditions.

③ The maximum flight speed for the dance step flight performance is based on the actual safety design of the dance steps. Under normal circumstances, in order to have better viewing and flight effects, the design speed of the dance step flight is 1m/s.

④ This data was measured in an unobstructed environment with no interference, under FCC standards.

The above data were measured in a standard laboratory environment. Data may vary depending on the environment. The final interpretation right belongs to Shenzhen Highju Innovation Technology Development Co., Ltd.

*The parameter values ​​listed on this page may vary to different degrees under different external environments, usage methods, and firmware versions. Please refer to your actual experience for the most accurate results.
