The brand new flagship outdoor formation drone product, with ultimate safety and high intelligence, is designed for large-scale flight scenarios and high standard activities, defining the intelligent transformation of aerial formation performances.
Dual visual positioning+RTK dual-mode navigation, fearless of signal interference, precise flight and perception obstacle avoidance system, dual guarantee of flight safety;
Intelligent takeoff and landing+fast charging, flight duration greater than charging duration, performance never ends;
Self heating system, capable of flying in extremely cold environments and expanding the time domain;
Jilian Communication+Data Distribution Management improves the efficiency of large-scale performance preparation by over 50%;

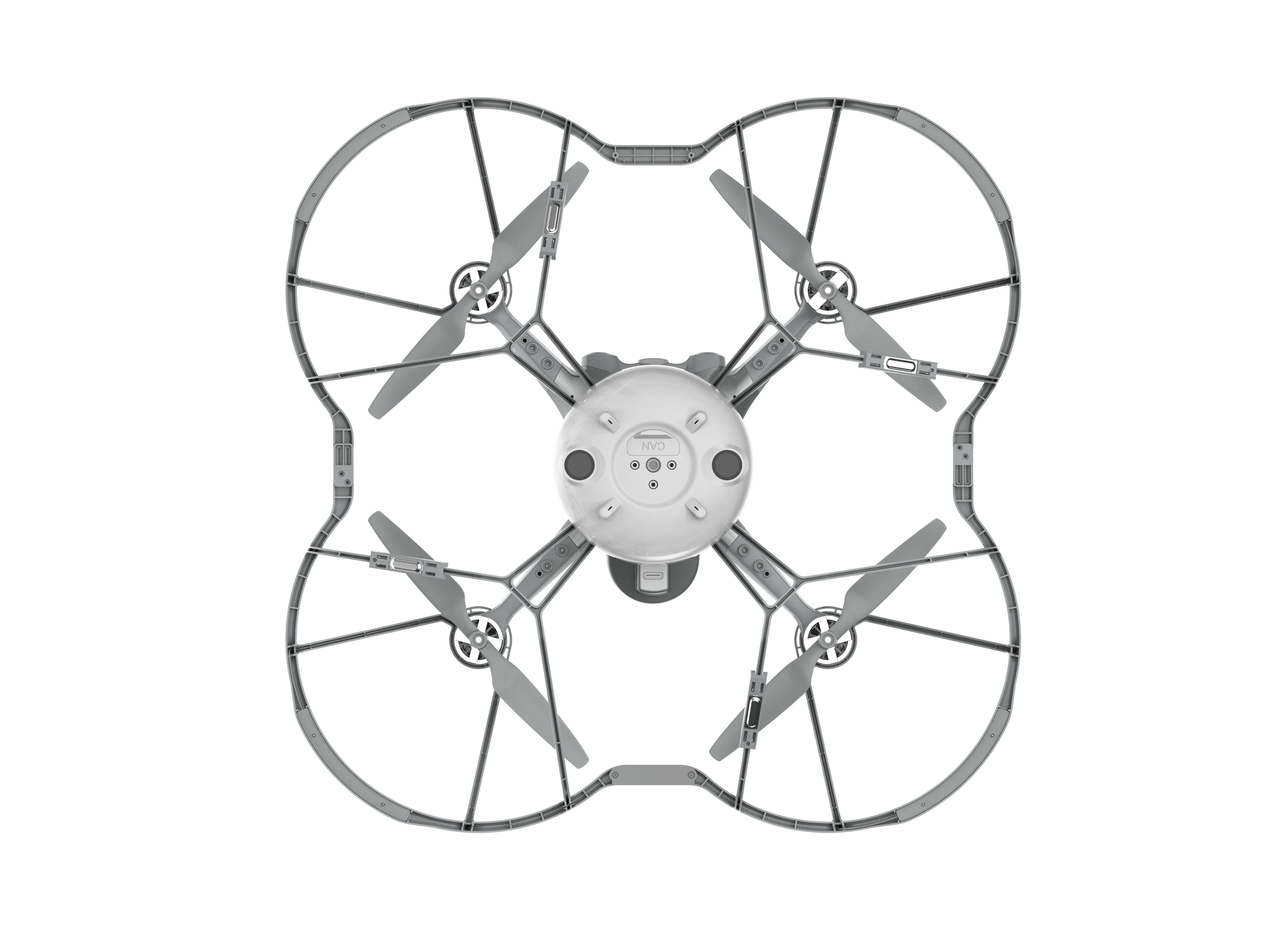

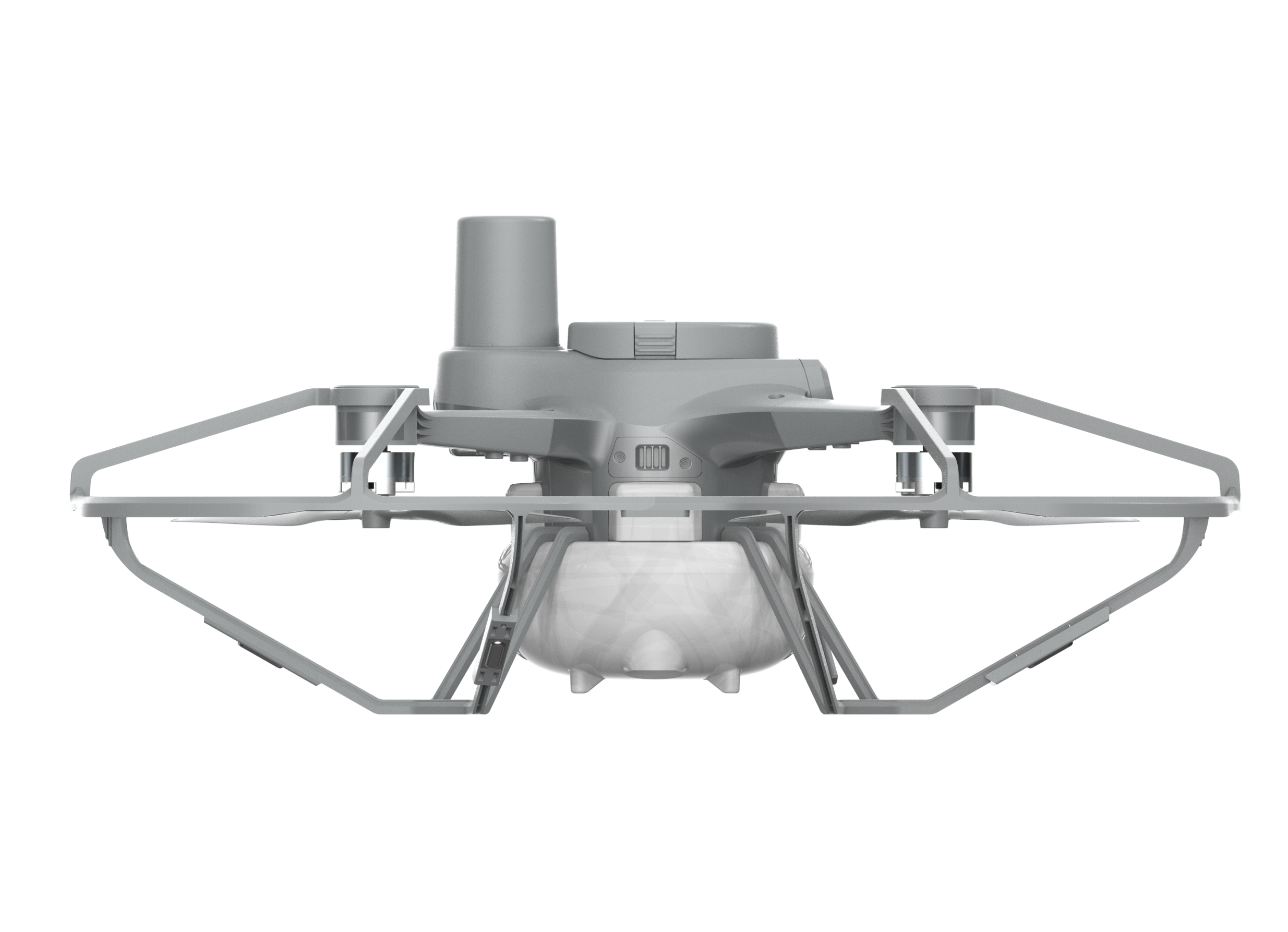

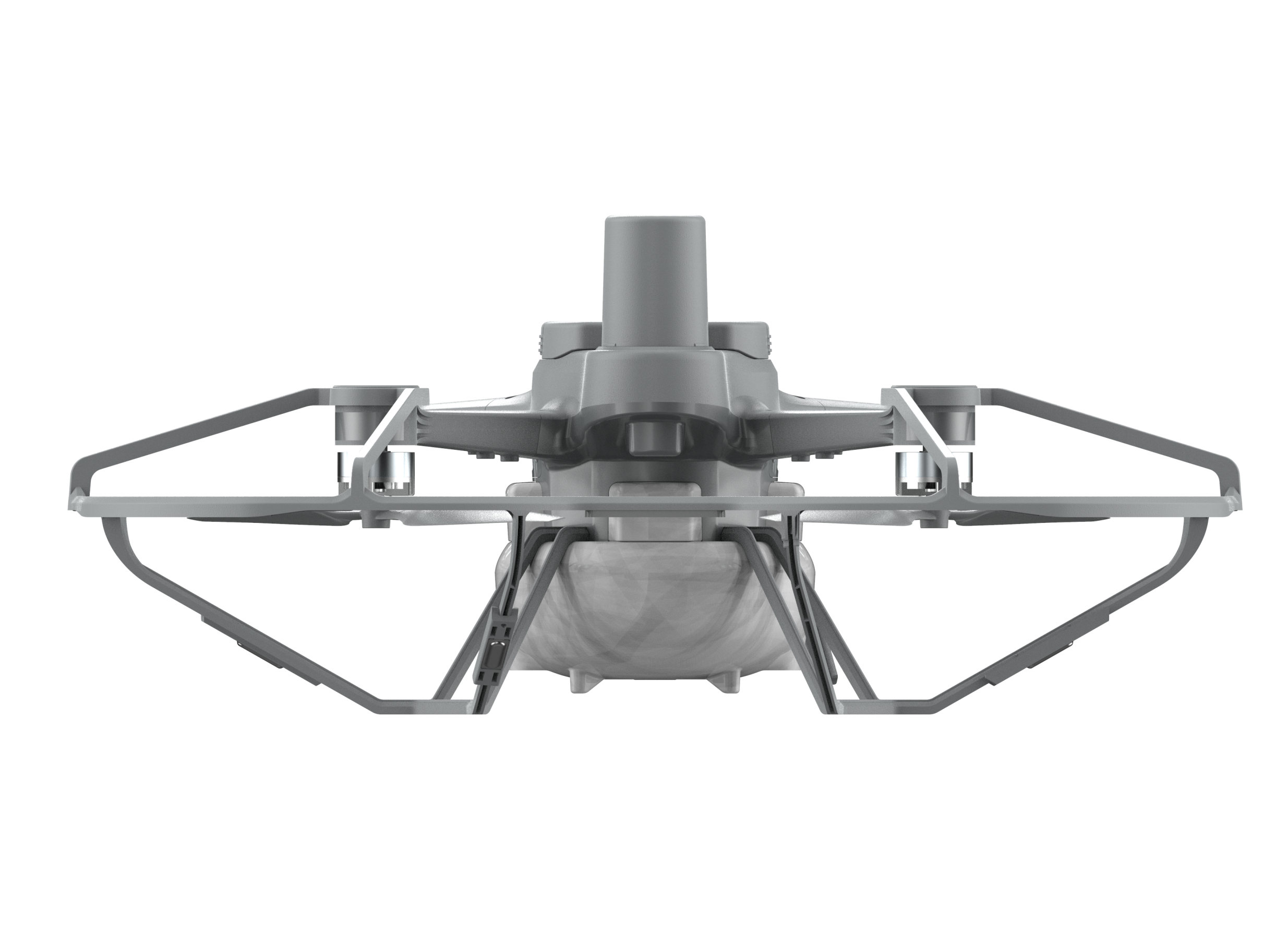

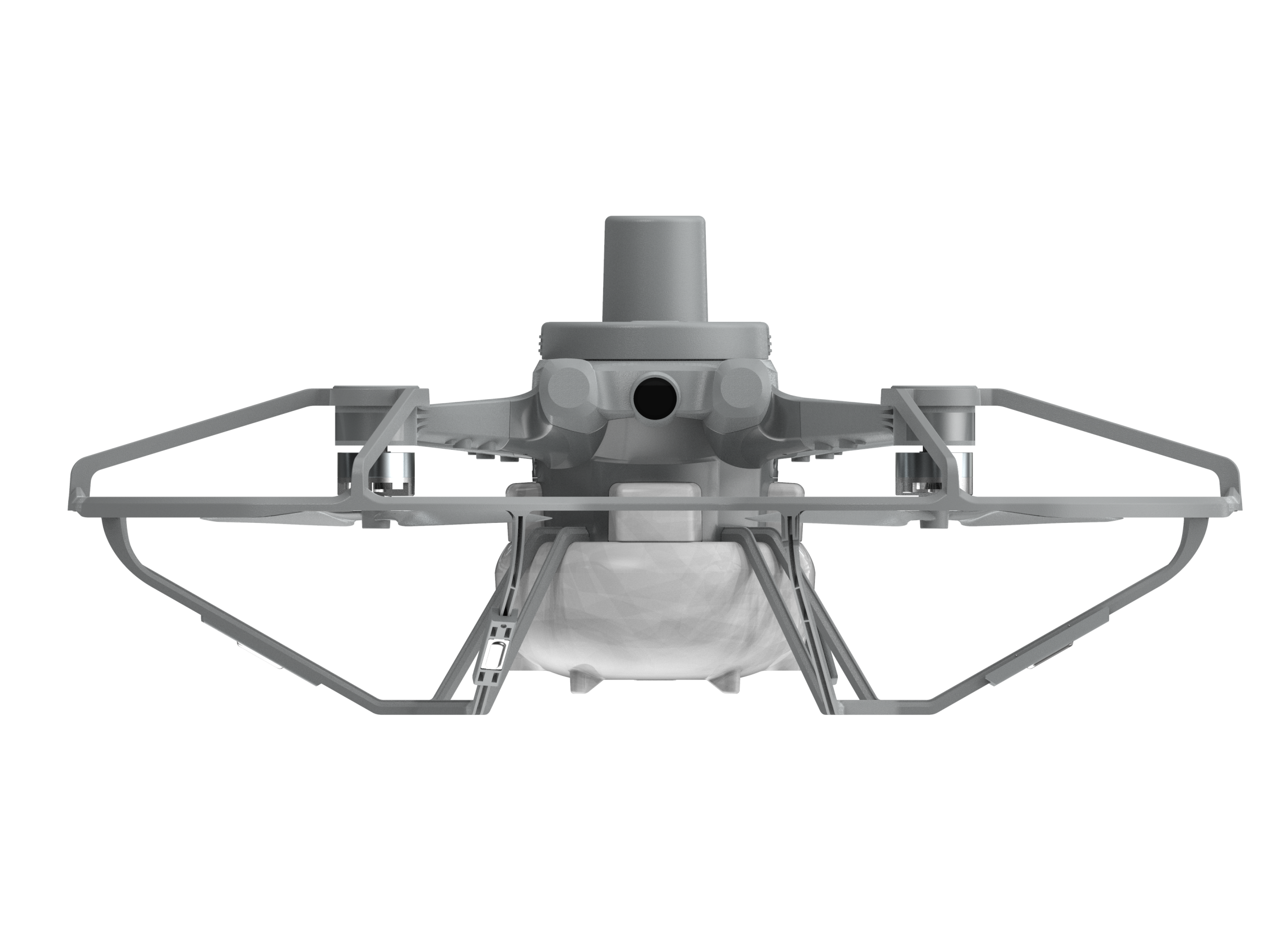

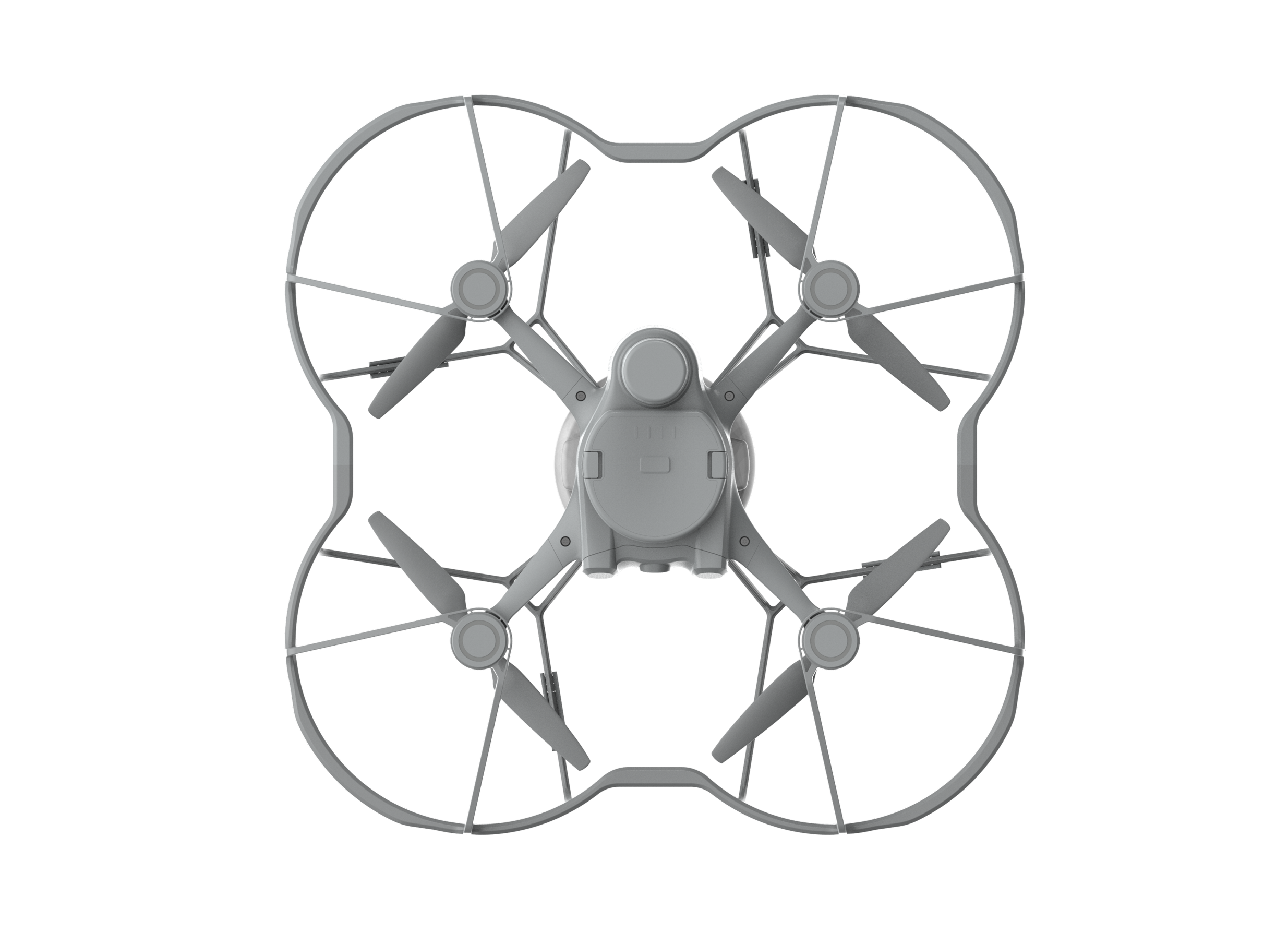

EMO 5 is a flagship outdoor formation performance drone that has been comprehensively upgraded by Gaoju Innovation. It is an outdoor formation drone that focuses on flight safety and high intelligence, designed specifically for high specification and large-scale events.
Dual visual positioning+RTK dual-mode navigation, fearless of signal interference, ultimate guarantee of flight safety; Power increased by 50%, performance flight speed increased by 120%, flying faster and more stable; Brightness increased by 200%+wide-angle lighting, the brightest star in the night sky; Flexible field layout, box type high-speed fast charging, capable of continuous flight without interruption; Fearless of light rain and severe cold, worry free flying at minus 30 degrees Celsius; The network communication efficiency has been increased by 6 times, and large-scale flights are stress free.

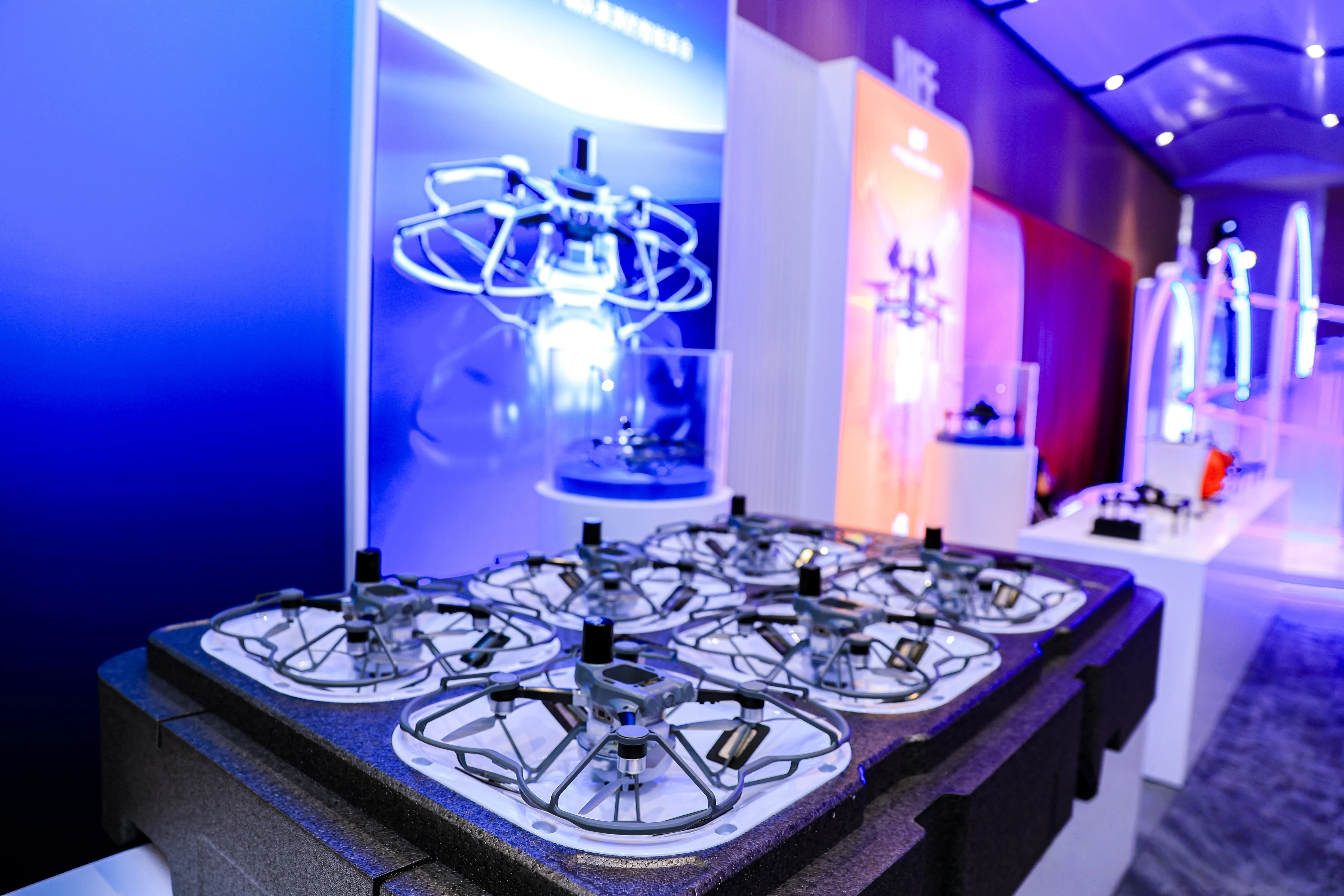

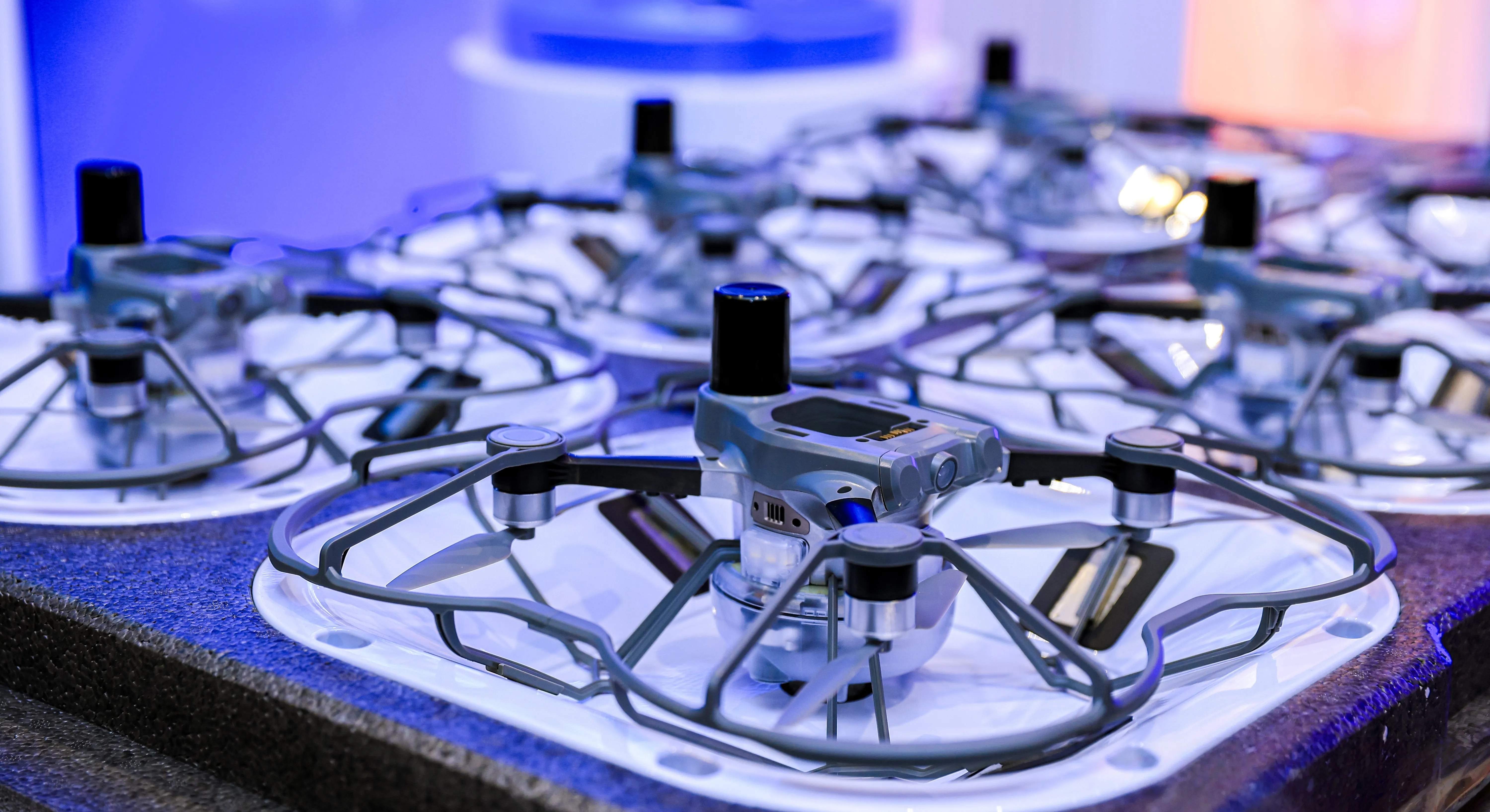

The whole machine has been comprehensively improved in terms of power performance, communication anti-interference, lighting performance, and endurance system, supporting intelligent storage box fast charging and continuous flight.
Gaoju Innovative EMO 5 Outdoor Formation Drone, Upgraded with Six Core Features, Embarks on a New Era of Intelligent Cluster Flight!
▪Large scale events and celebrations, brand marketing and release, cultural and tourism night tours and performances, urban image display:
▪Based on intelligent flight safety assurance, meet the requirements of high-level activities;
▪Scenarios with high frequency of demand for large aircraft flights;
▪Meet the needs of flying in cold regions;
|
Specifications |
parameter |
|
Size |
339×339×143.9 mm |
|
Weight |
227.69 * 227.69 mm (diagonal) |
|
Wheelbase |
≤ Level 6 |
|
Wind resistance rating |
Visual+RTK |
|
Positioning method |
RTK: Horizontal ± 10mm/Vertical ± 1mm |
|
Positioning accuracy |
Visual: Horizontal ± 0.5 m, Vertical ± 1 m |
|
Battery |
14.4V; Standard version 3000mAh/Endurance version 5000mAh |
|
Battery |
Standard 20 minutes/30 minutes battery life |
|
Suggested performance duration |
Standard version ≤ 15min Battery life version ≤ 25min |
|
Light |
RGBW full-color, maximum power 60W, light brightness 2400lm |
|
Maximum communication distance |
Radio station 1.5km/Wi Fi 800m |
|
Operating Temperature |
-10 ° C to 45 ° C (heating mode up to -30 ° C) |
|
Protection level |
IP43 |
* The above data was measured in a standard experimental environment, and there may be some differences in data depending on the environment. The final interpretation rights belong to Shenzhen Gaoju Innovation Technology Development Co., Ltd.
