Flagship upgrade, industry innovator

High-definition reconnaissance, precise target positioning, and real-time data transmission provide a new reconnaissance solution for the civilian field;

Convenient vertical take-off and landing, long-duration flight capability; modular design, easy to quickly disassemble and assemble pods, laser radar and other mission equipment;

标题

Worry-free takeoff and landing

标题

Long battery life

标题

Accurate positioning

标题

Reliable technology

标题

Easy maintenance

标题

Feature-rich

标题

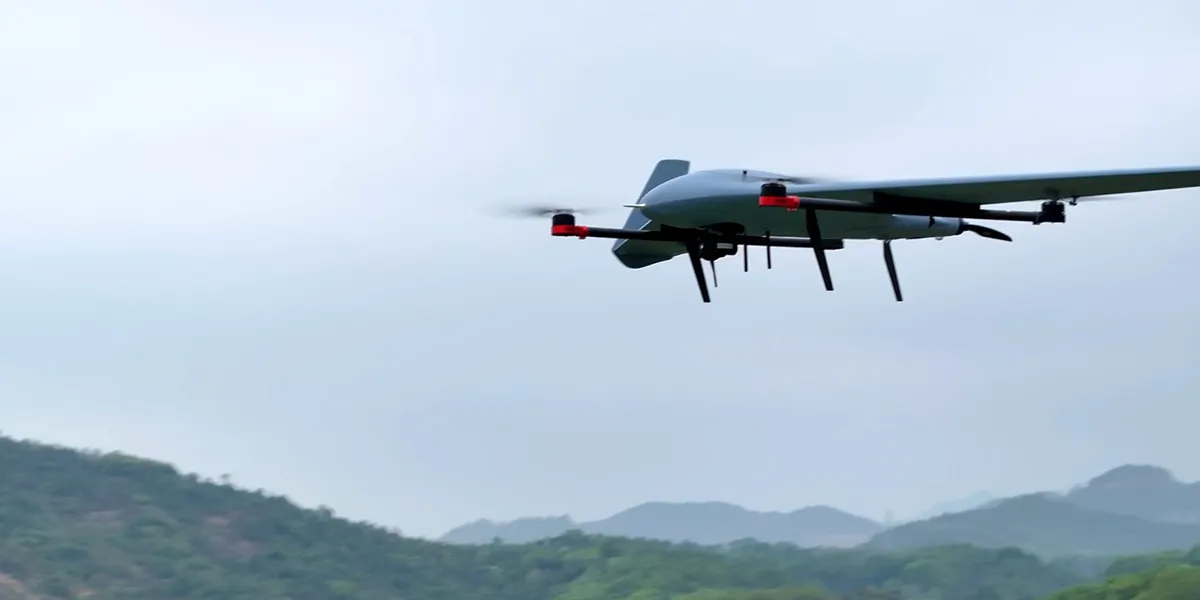

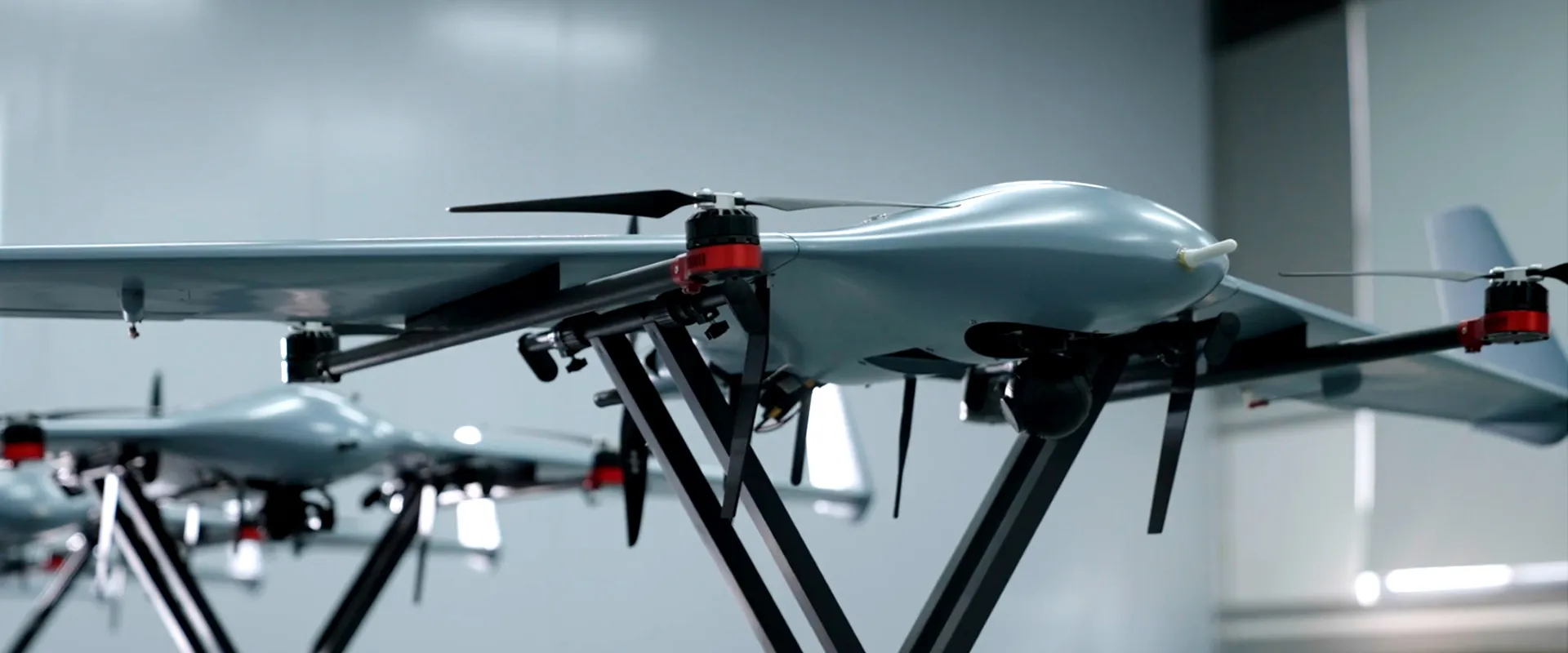

Powerful performance, designed for aerial monitoring

The G10 has an ingenious modular structure, long-range powerful engine, and further improved flight performance, making it a perfect candidate for flight performance.

No matter what the challenge, we will move forward bravely, fly wherever we are directed, and complete the task excellently.

135min

Maximum flight operation time

1.5kg

Maximum payload

30km

Control distance

110km/h

Maximum speed

Wind speed below level 6

Maximum support strong wind

标题

Full coverage of operation scenarios

Search and Rescue

Forestry

Geological exploration and mapping

Security surveillance and border patrol

Security and detection intelligent platform, inherently powerful

Features of the reconnaissance solution: Electric vertical take-off and landing, strong adaptability to take-off environments; fixed-wing cruise with long endurance and wide coverage;

Multiple redundant means ensure safety functions, stable and reliable to use; pod infrared thermal imaging operation is not limited by time;

Intelligent route planning and target locking; high-definition and high-brightness display screen on the ground side, which can be clearly viewed even in strong light;

标题

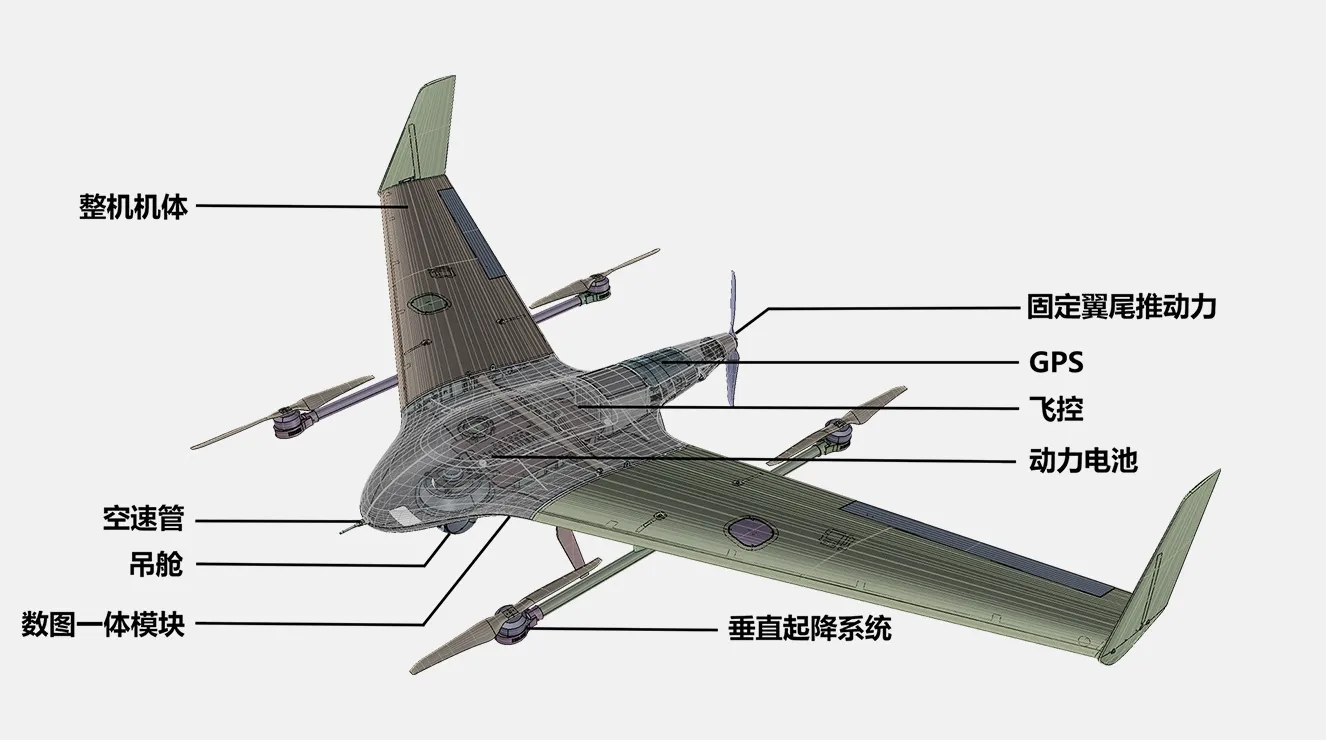

Core module, strong inside

标题

Single light pod

▪10x visible light optical zoom, 8x digital zoom, TF card video and photo taking.

▪Network IP output, 2KRTSP stream video storage.

▪Three-axis stabilization pod gimbal, network IP, SBUS, serial port command control, expandable PWM control.

▪Ground station software display and control integrated.

Dual light pod

▪Three-axis stabilized gimbal with built-in shock absorption.

▪10x visible light zoom.

▪256 thermal imaging.

▪TF card for video and photo recording.

▪Network IP, HDMI dual output.

▪Provides integrated ground-side software, video and control.

标题

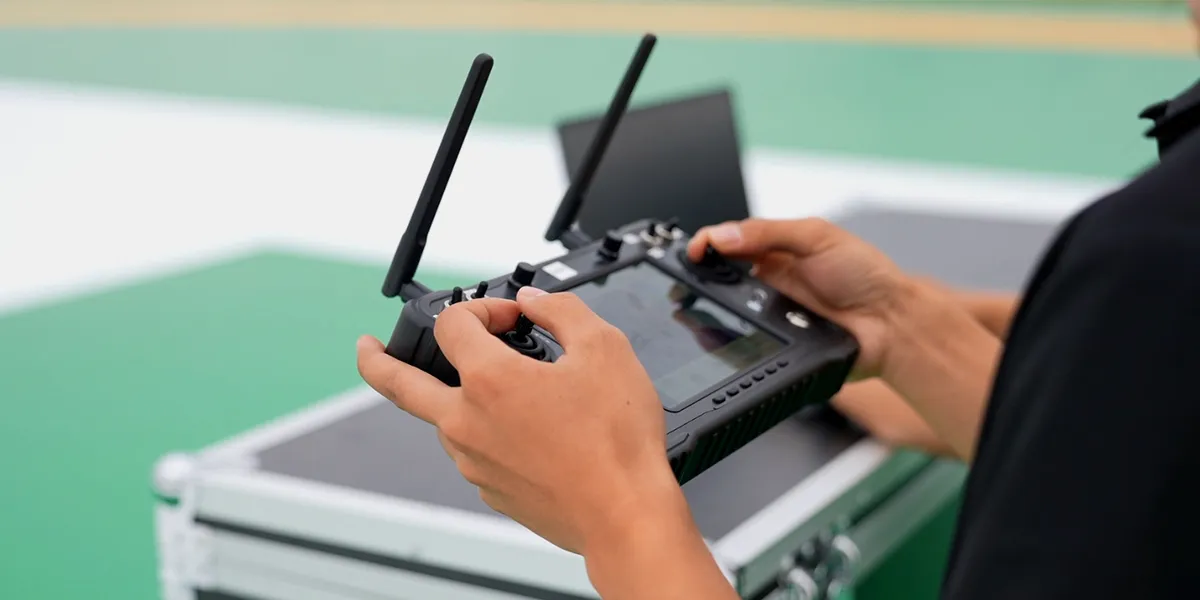

Digital image transmission integrated handheld link

▪Supports rich interfaces such as HDMI/Ethernet port/sensor port/SBUS, etc.

▪Support more cameras/gimbals/pods and other video devices.

▪Support wired, wireless, RTSP digital image transmission and sharing.

▪Supports third-party Android application installation, using 7-inch high-definition and high-brightness 1080P display.

Product parameters

Version parameters	CEO Version	NEO Version
Aircraft wingspan	2.4m	2.4m
captain	1.1m	1.1m
Battery life	55min	2h
Effective load	1.5kg	1kg
Cruising speed	72-110km/h	72-110km/h
Maximum speed	110km/h	110km/h
Stall speed	60km/h	65km/h
Maximum range	75km	160km
Wind resistance	Level 7	Level 7
Takeoff method	Vertical Take-Off and Landing	Vertical Take-Off and Landing
Maximum take-off weight	11.5kg	12kg
Maximum take-off altitude	4000m	4000m
Control distance	30km	30km
Image transmission distance	30km	30km

* The parameter values listed on this page may vary to varying degrees under different external environments, usage methods, and firmware versions. Please refer to actual experience.
